用途：本系列水洗機適應(yīng)機織物印花后水洗、冷染后水洗，各種去油、除塵及退漿水洗工藝。

特征：印花后水洗采用全新的全沸水工藝，具有水耗少，色牢度高的特點。

技術(shù)參數(shù)：輥面幅寬：1 600---3600mm

機械車速：15-120m/min

控制方式：PLC變頻交流傳動

適用布重：80-400g/㎡

進出布方式：平幅或打卷進出

Application: this series washing machine is suitable for washing after dyeing, washing after cold dyeing, various deoiling, dedusting and desizing process.

Features: after printing, the new full boiling water process is adopted, which has the characteristics of less water consumption and high color fastness.

Technical parameters: width of roll surface: 1 600---3600mm

Mechanical speed: 15-120m/min

Control mode: PLC variable frequency AC drive

Application of cloth: 80-400g/ square meters

Way of import and export: flat or roll in and out

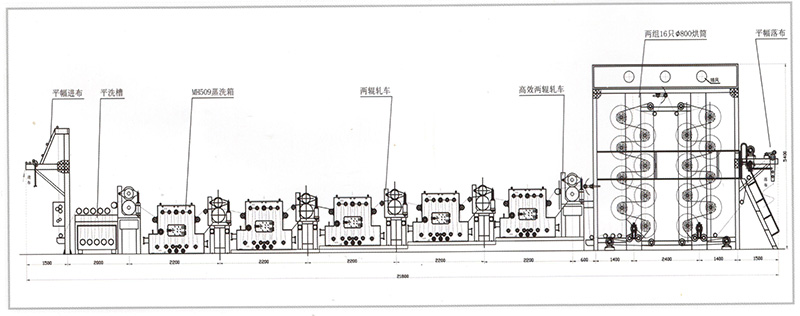

工藝流程圖 Process Flow Diagram
